WiDig-801 QuickStart MacOS-1010

From I-CubeX Wiki
Jump to: navigation, search

The following instructions show how to pair the WiDig to Mac OSX 10.10 (and newer), assuming the WiDig's BLE is enabled. The WiDig's blue LED will blink slowly (~1 sec interval) to indicate its BLE is enabled and available for a connection. Once connected via BLE the blue LED will be steady on. If the blue LED is not slowly blinking BLE is not enabled. To enable the WiDig's BLE, see Connect QuickStart.

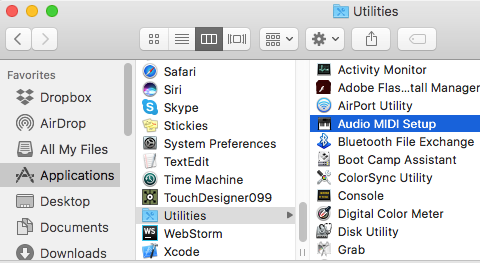

1. Open Audio MIDI Setup under Applications/Utilities.

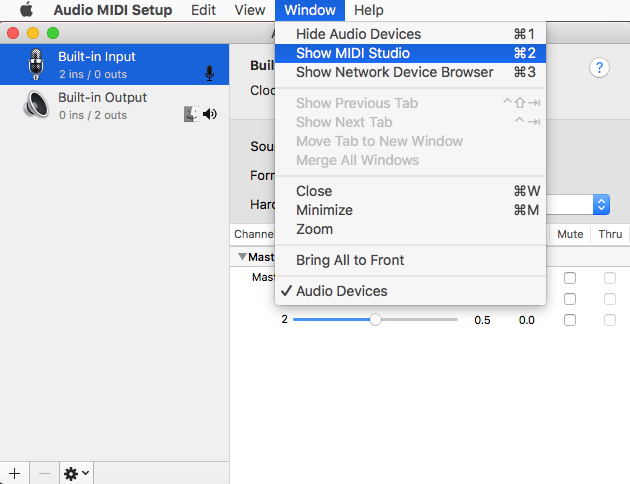

2. Go to "MIDI Studio":

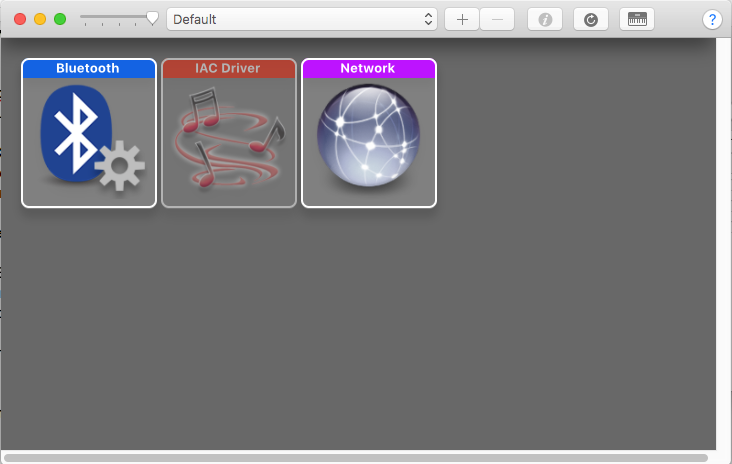

3. Double click the Bluetooth icon:

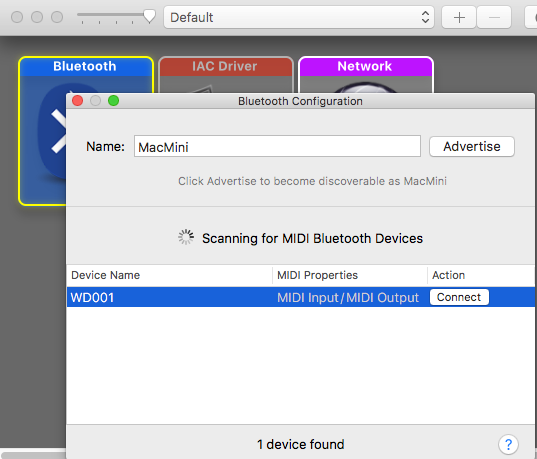

4. Select the WiDig device, and press the "connect" button:




5. Now, the WiDig should be connected and a BLE MIDI port will be added to the system. This port can be used by EditorX and other MIDI enabled applications.

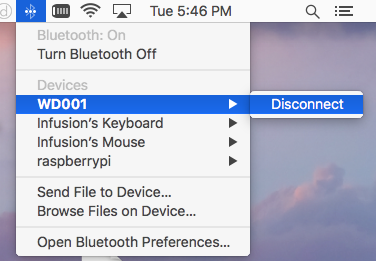

To disconnect, click on the bluetooth icon in the system menu at the top of the screen, select the WiDig device and disconnect:




Once the WiDig's BLE is disconnected, its blue LED will blink slowly (~1 sec interval).
